CYZ-A Series Self-Priming Centrifugal Oil Pump

Ask Lasest Price
Brand Name :	COWELL
Model Number :	CYZ-A Series
Supply Ability :
Price :
Payment Terms :	T/T
Delivery Time :	7-15 Working days

Add to Cart

Product Details
Company Profile

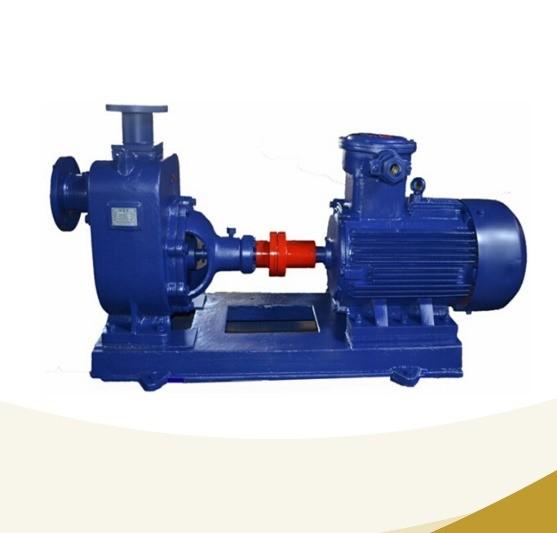

CYZ-A Series Self-Priming Centrifugal Oil Pump

CYZ-A Series Self-priming Centrifugal Oil Pump

Description

CYZ self-priming centrifugal oil pump is the latest pump . And this type pump developed through the digestion,adsorption and improvement of related technical data both at home and abroad. It is an ideal product applicable for the petroleum industry, land oil house and oil tanker, and also suitable as the cargo oil pump, bilge pump, fire pump and ballast pump for ship, and for cooling water circulation of the machine and so on, to respectively transport oil products like gas, kerosene diesel oil, etc. and the medium of tomperature with -20℃~ 80℃ .

Features

Centrifugal pump, self priming
Highest Suction: 6 meters.
Pumping temperature: -20 to 80℃
Simple structure and stable
Casing Material: cast iron, stainless steel
Impeller Material: bronze, stainless steel
Seal: Mechanical Seal

Application

The pump can transport diesel, Gasoline, water, sea water, alcohol and other chemicals. Widely used in all industries, such as petroleum chemicals, oil field and Marine etc. Power: motor driven and engine driven for option. Trailer type can be designed according to customer's request.

Structure

1. coupling

2. Pump Shaft

3. Bearing

4. Mechanical Seal

5. Bearing Body

6. Pump Case

7. Outlet Base

8. Inlet Base

9. Front Seal Ring

10. Impeller

11. Rear Cover

12.Water Deflector

13. Filling Port

14. Liquid

Return Port

Technical Specification

Model	Motor Power (kw)	Speed (r/min)	Diameter (mm)	Flow Rate (m 3 /h)	Head (m)	Suction Head (m)
25CYZ-A-20	1.1	2900	25	3.2	20	6
25CYZ-A-20	1.5	2900	25	3.2	32	6
32CYZ-A-20	3	2900	32	3.2	50	6
40CYZ-A-20	1.5	2900	40	6.3	20	5
40CYZ-A-32	2.2	2900	40	6.3	32	5
40CYZ-A-40	4	2900	40	10	40	5
40CYZ-A-50	4	2900	40	6.3	50	5
50CYZ-A-12	1.5	2900	50	12.5	12	5
50CYZ-A-20	2.2	2900	50	15	20	5
50CYZ-A-30	3	2900	50	12.5	30	5
50CYZ-A-35	4	2900	50	12.5	35	5
50CYZ-A-40	4	2900	50	10	40	5
50CYZ-A-50	5.5	2900	50	12.5	50	5
50CYZ-A-60	7.5	2900	50	12.5	60	5
50CYZ-A-75	11	2900	50	15	75	5
65CYZ-A-15	3	2900	65	30	15	4
65CYZ-A-32	5.5	2900	65	25	32	5
65CYZ-A-50	7.5	2900	65	25	50	5
65CYZ-A-70	15	2900	65	25	70	5
80CYZ-A-13	3	2900	80	35	13	3.5
80CYZ-A-17	4	2900	80	43	17	3.5
80CYZ-A-22	5.5	2900	80	40	22	3.5
80CYZ-A-25	7.5	2900	80	50	25	4
80CYZ-A-32	7.5	2900	80	50	32	4
80CYZ-A-40	11	2900	80	50	40	4
80CYZ-A-55	18.5	2900	80	60	55	4.5
80CYZ-A-70	22	2900	80	60	70	4.5
100CYZ-A-20	7.5	2900	100	80	20	3.5
100CYZ-A-25	11	2900	100	100	25	4.5
100CYZ-A-32	15	2900	100	100	32	4.5
100CYZ-A-40	18.5	2900	100	100	40	4.5
100CYZ-A-50	22	2900	100	100	50	4.5
100CYZ-A-65	30	2900	100	100	65	4.5
100CYZ-A-75	30	2900	100	100	75	4.5
150CYZ-A-20	18.5	1450	150	180	20	4.5
150CYZ-A-30	30	1450	150	170	30	4.5
150CYZ-A-45	37	2900	150	160	45	4.5
150CYZ-A-55	45	2900	150	160	80	4.5
150CYZ-A-65	55	2900	150	170	65	4.5
150CYZ-A-80	55	2900	150	160	80	4.5
200CYZ-A-32	90	1450,	200	400	32	4.5
250CYZ-A-50	90	1450	250	400	50	4.5
300CYZ-A-50	110	1450	300	500	50	4.5
