KIH Series Chemical Centrifugal Pump

Ask Lasest Price
Model Number :	KIH Series
Brand Name :	COWELL
Certification :	MFG. License
Payment Terms :	T/T
Delivery Time :	3-15 Working days

Add to Cart

Product Details
Company Profile

KIH Series Chemical Centrifugal Pump

KIH Series Chemical Centrifugal Pump

Description

KIH is a kind of chemical centrifugal pump. It has a reinforcement in pump body and suspended frame, making it better in appearance, safe and reliable operation and also has a longer life. The suspension cross products have an outstanding design for heat sink and increase the cooling devices, which ensures to meet the different and complicated requirements of industrial and mining project, and also accelerate the delivery and inventory. The impeller of pump body is precise casting and has closed type, semi-open type and open type with high efficiency. The material of liquid contact parts is stainless steel 304. SS316L, CD-4MCu, 904, 904L and hastelloy material for option.

Scope of Parameter

Flow Capacity: 3.4~600m3/h
Head: 3.6-132m
Speed: 2900r/min, 1450r/min
Power of motor:0.55~160kw
Inlet & Outlet:25~250mm
Density: P=1.0~1.84Χ103kg/m3
Temperature: -40~180℃
Working pressure: less than 1.6MPa

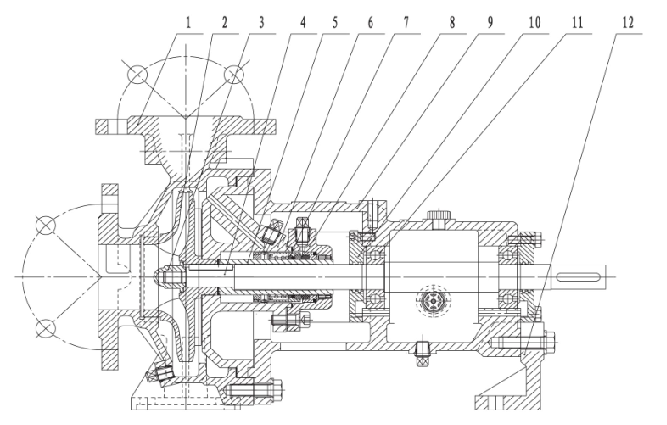

Structure

No.	1	2	3	4	5	6
Parts	Pump Case	Impeller	Impeller Nut	Pump Shaft	Shaft Bushing	Pump Cover
Material	Stainless Steel	Stainless Steel	Stainless Steel	3Cr13 or SS	Stainless Steel	Stainless Steel
No.	7	8	9	10	11	12
Parts	Mechanical Seal	Seal Gland	Frame	Bearing Cover	Bearing	Support foot
Material		Stainless Steel	HT200	HT200	Stainless Steel	Q235A

Application

KIH Series Chemical Centrifugal Pump is mainly used in chemical, petroleum, petrochemical industries, metallurgy, light industry, printing, dying, pharmaceutical, environmental protection, sea Water desalination, maritime oil, papermaking, foodstuff etc. Used for organic or inorganic chemical medium, oil products and corrosive liquid which doesn’t contain sold particles.
